Fixed Angle And Variable Angle Oriented Bent Sub For Horizontal Directional Well

Name: Fixed Angle And Variable Angle Oriented Bent Sub For Horizontal Directional Well
Brand: TIPTOP
Price: 1 USD

Quality Fixed Angle And Variable Angle Oriented Bent Sub For Horizontal Directional Well for sale

Brand Name : TIPTOP

Model Number : Oriented Bent Sub

Certification : MTC

Place of Origin : China

MOQ : 10 pcs

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 1000pcs per month

Delivery Time : 10-50 days

Packaging Details : seaworthy export box

Product Name : Oriented Bent Sub

Connection : API

Type 1 : Fixed Angle Oriented Bent Sub

Type 2 : Variable Angle Oriented Bent Sub

Usage : Power Deflection Tool

Application : Horizontal Directional Well Drilling

Contact Now

Fixed Angle and Variable Angle Oriented Bent Sub for Horizontal Directional Well

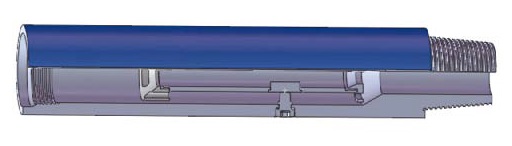

The oriented bent sub is a special deflecting joint. It is divided into fixed angle bent sub and variable bent sub. The oriented bent sub is a major power deflection tool having a fixed angle (α) deviated from low end thread of the bent sub to axial line of drill stem. The power drilling tools under the application of oriented bent sub give the bit a constant lateral force to ensure that the bit can cut on the well-wall laterally and further drill into a curved well trace. It is simple in structure, easy to use, and low cost.

OD mm(inch)	ID mm(inch)	Bent Angle	Connection
197 (7 3/40)	71.4 (2 13/16)	1°, 1.5°, 2°, 2.5°	6 5/8 REG
203.2 (8)	71.4 (2 13/16)	1°, 1.5°, 2°, 2.5°	6 5/8 REG
165 (6 1/2)	71.4 (2 13/16)	1°, 1.5°, 2°, 2.5°	NC50
152 (5 63/64)	71.4 (2 13/16)	1°, 1.5°, 2°	NC46
120.7 (4 3/4)	50.8 (2)	1°, 1.5°, 2°	NC58
104.8 (4 1/8)	32 ( 1 1/4)	1°, 1.5°, 2°	NC31
